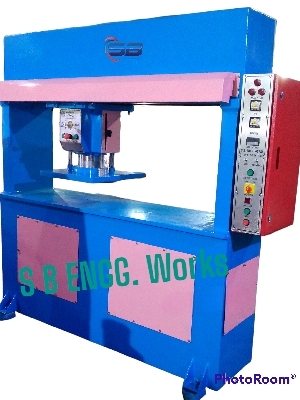

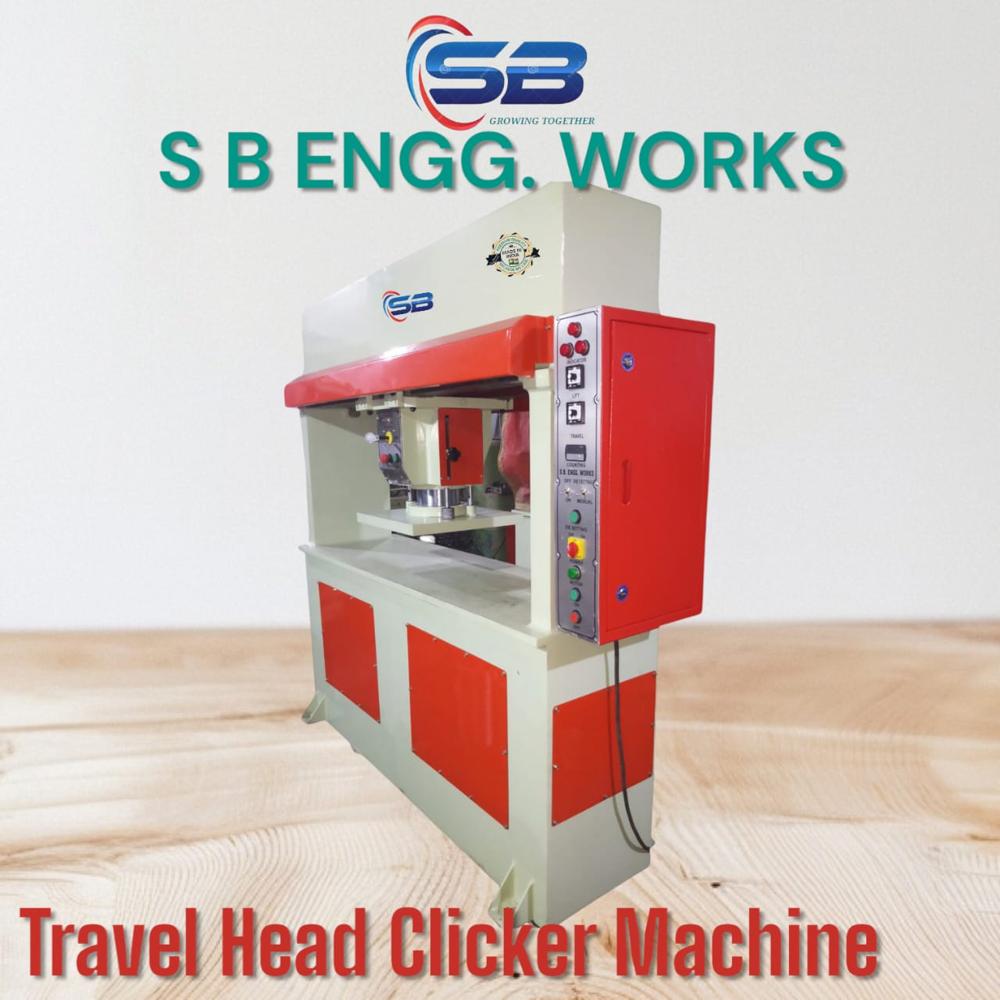

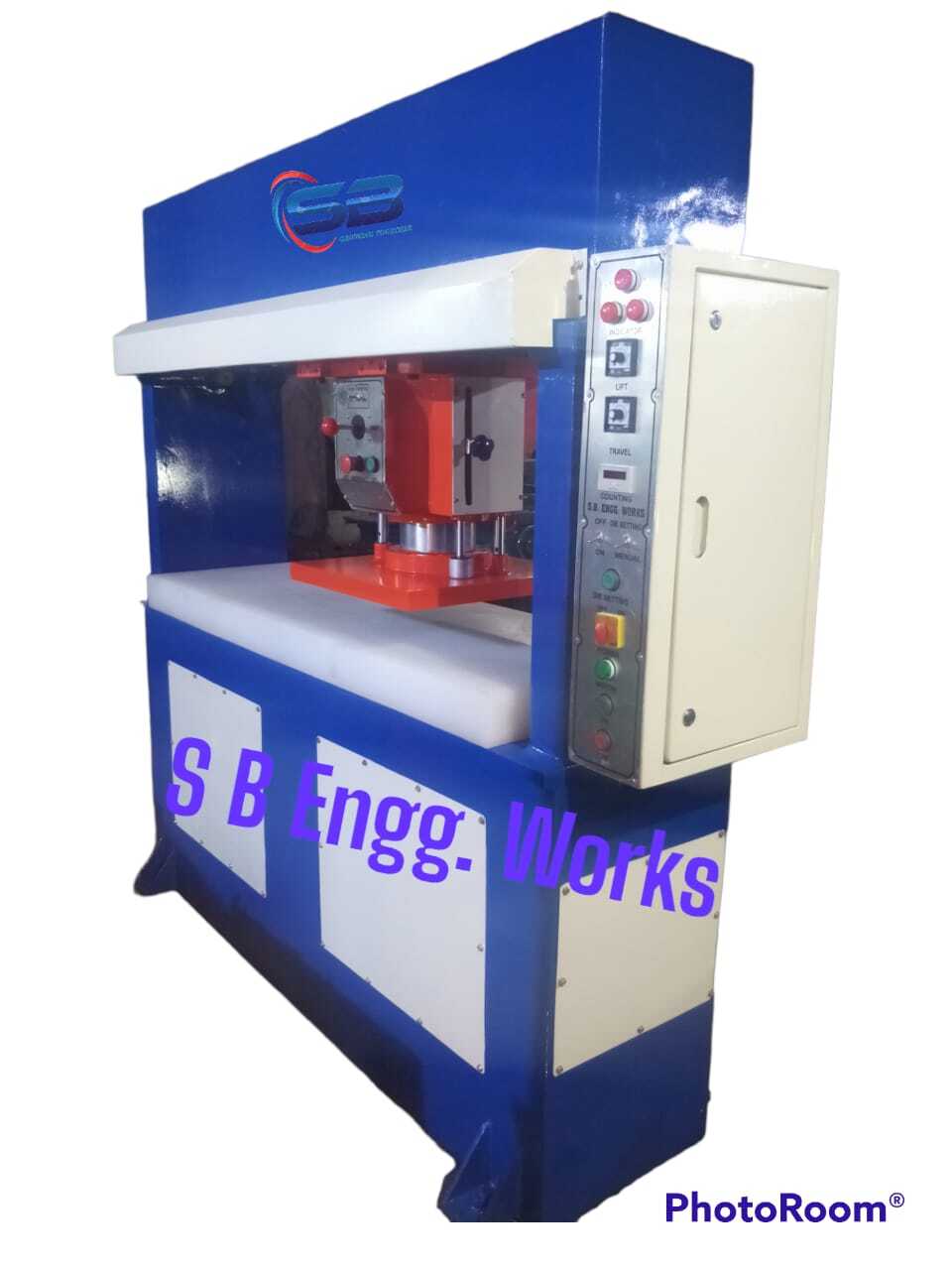

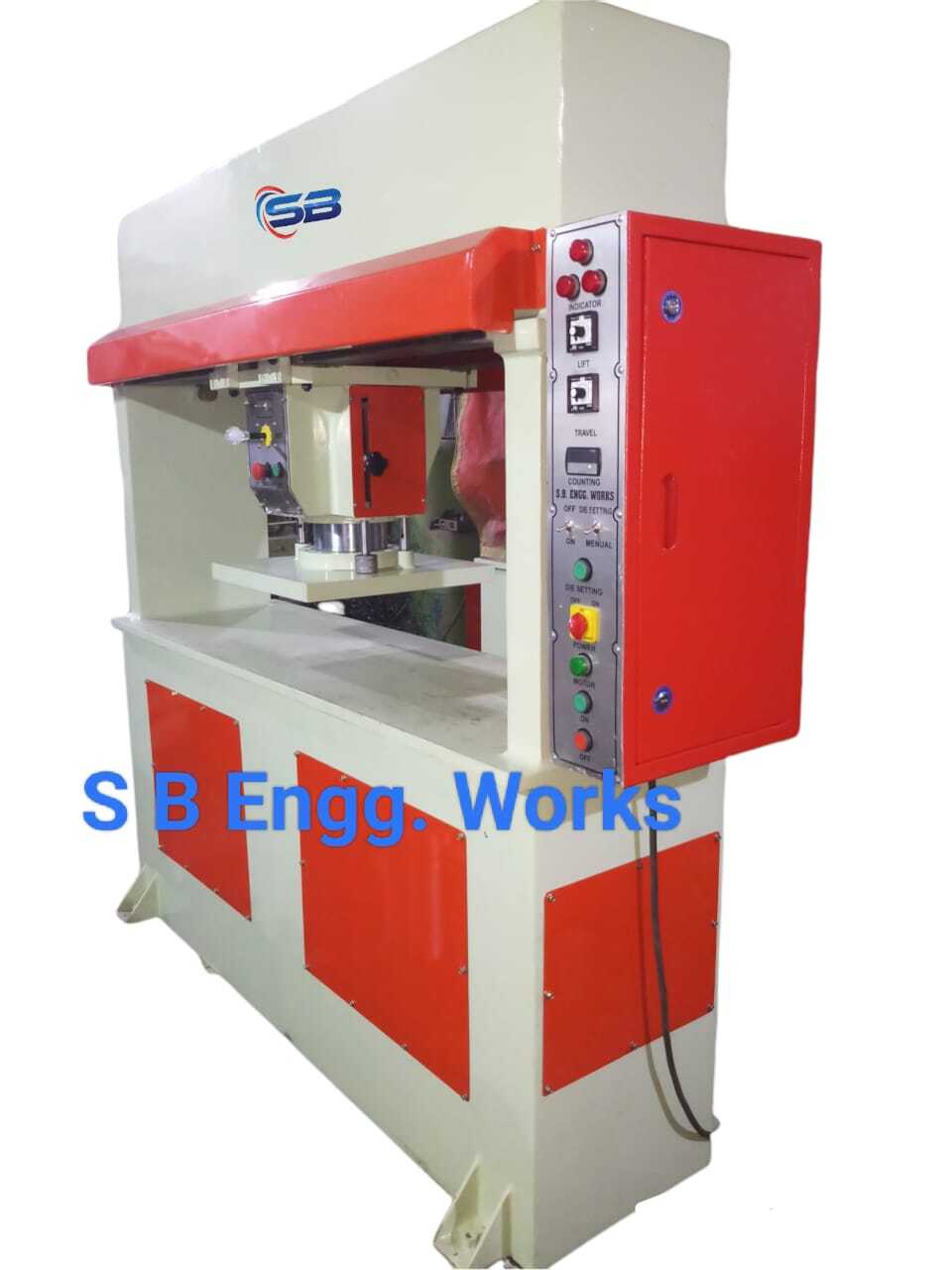

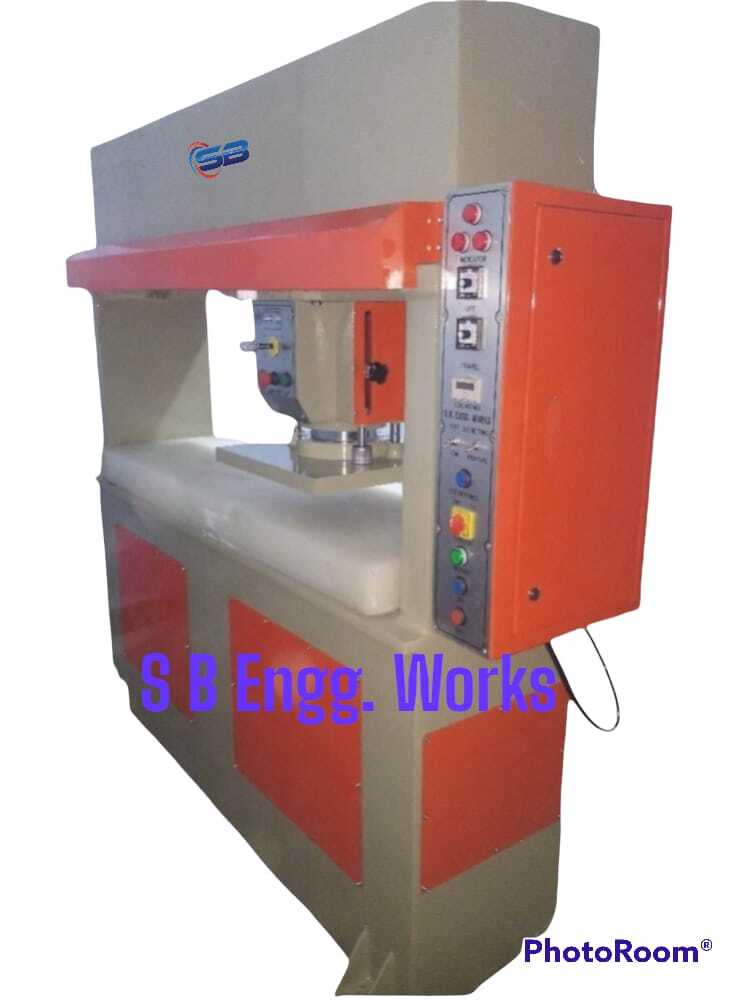

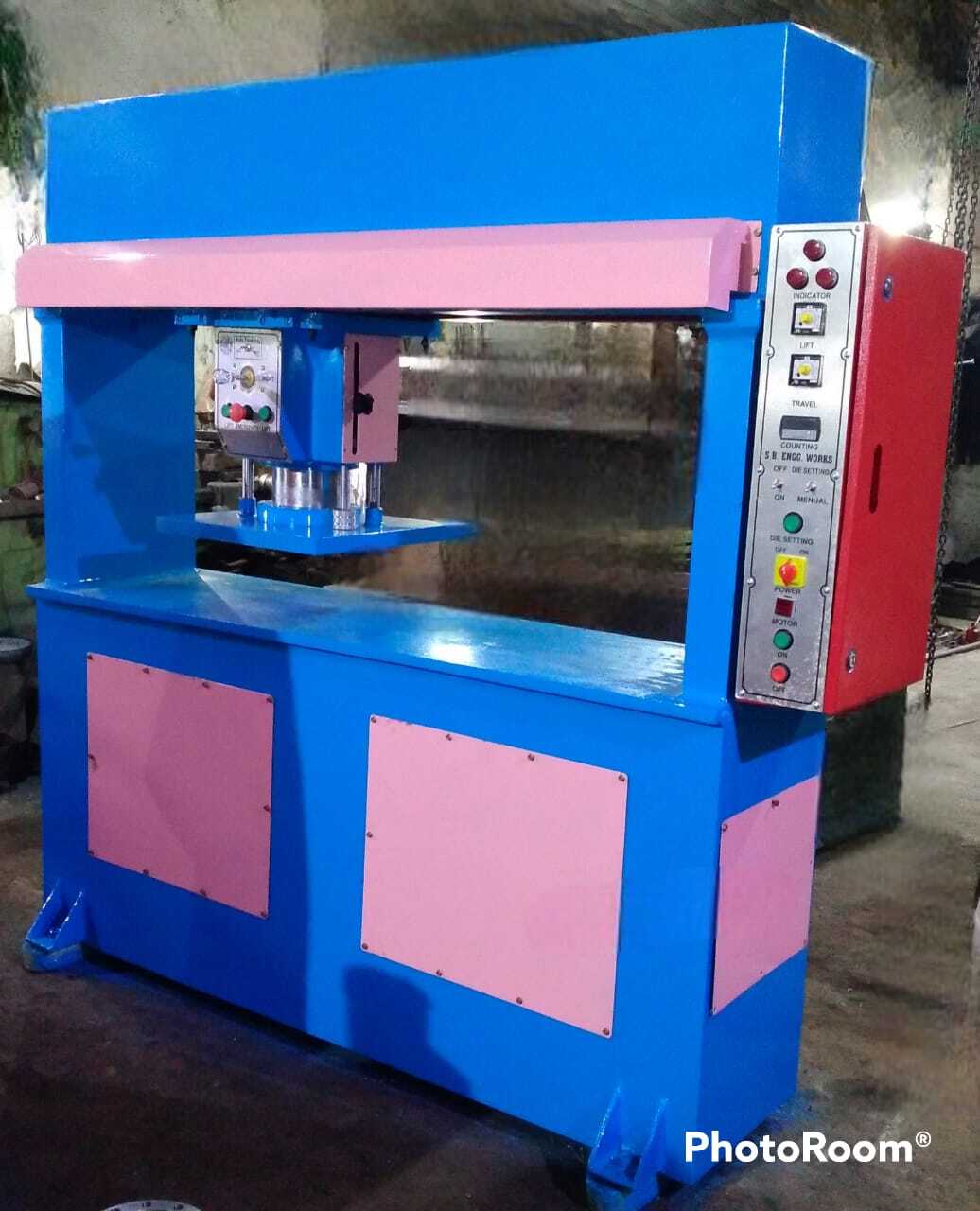

Travel Head Clicker Machine

Product Description

Product Details:

Capacity :-              30 Ton

Working Area :-       64 x 20 Inch

Motor :-                3HP and 0.75 HP

Country of Origin :-Made in India

Cutting Plate :-18 x 18 Inch

Weight :-                1300KG

Voltage :-                  440 V

Material :-         Stainless Steel

Frequency :-         50 Hz

Stock Adjusting Range :- Up to 7 inch

Hydraulic Oil Capacity :-80 Ltrs.

Punching Board Size (inch) :- 63 * 20 * 4

Hydraulic Valve, Pump and Direction Valve :-Branded

Use and Characteristics:

1.Gantry Frame structure made of profile steel is adopted, with high intensity and without deformation.

2.The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.

3.The hydraulic System specially designed with featured by low noise and low oil consumption.

4.The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.

5.The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.

6Differential oil way is adopted to allow rapid and convenient cutting.

7Products of special specifications can be customized.

8Avoid Accident due to auto break system.

9Production capacity increase because of auto break system.
